Computerised brinell hardness testing machines

Features:

1. 1. The actual load application system is of dead weight type combined with mechanical lever system. The supporting hydraulic system is for initial lifting of load before each test and dampening the load application system for smooth application of load.
2. 2. A separate hydraulic power pack, positioned in the bottom part of the machine adds to the machine stability..
3. 3. Direct and precise measurement of Brinell hardness number using advanced image processing technology.
4. 4. Our unique design of a floating fulcrum lever system ensures high accuracy and dependability.
5. 5. An automatic indenter index system is provided which tilts the indenter after the impression and the magnified image is visible on the IPC for area measurement & display of hardness value.
6. 6. Thus this machine saves a lot of cycle time, improves accuracy of measurement and gives fast and accurate results with less operator fatigue.
7. 7. This model is mainly useful for production testing in Auto shops, Foundries, Forging Shops and Heat treatment units, etc.
8. 8. The machine accuracies confirm to IS: 2281-2005 & BS: 240

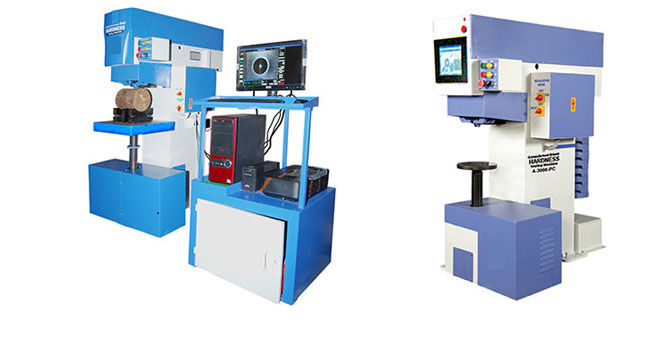

Fully Automatic Computerized Brinell Hardness Testing Machine

Features:

• 1. Highly efficient yet low cost.
• 2. Automatic spindle up & down.
• 3. Dwell time setting.
• 4. Measuring range up to 6 mm diameter.
• 5. Confirms to IS :2281/2005, BS : 240 & ASTM : E-10.

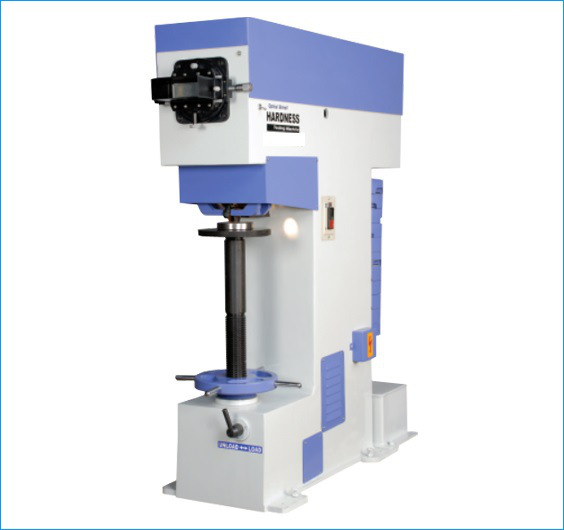

Optical Brinell Hardness Testing Machines

Features:

1. 1. This machine is designed for Brinell Hardness measurement on steel & other ferrous material & also on non-ferrous material like Brass, Bronze, Aluminum etc. The material can be cast, forged or rolled & the shape can be flat, round or irregular.
2. 2. This machine is a modified version of AKB-3000 which is provided with an inbuilt optical system of 14X magnification.
3. 3. An Automatic indenter index system is provided which tilts the indenter after the impression & the magnified image is visible on the screen for measurement with a 0.01 mm least count (Direct indentation measurement system).
4. 4. Thus this machine gives fast & accurate results with less operator fatigue.
5. 5. This model is mainly useful for production testing in Auto Shops, Foundries, Forge shops & Heat treatment units, etc. Its stability & Unique design of a floating fulcrum lever system ensure high accurate & dependability.
6. 6. The load application system is of dead weight type combined with mechanical lever system.
7. 7. The supporting hydraulic system is for initial lifting of load before each test & damping the load application system for smooth application of load.
8. 8. Test loads from 500 to 3000 kgf in steps of 250kgf.
9. 9. The height X Throat is 380 X 200 mm.
10. 10. Special Test fixtures for odd jobs / production testing can be supplied (Optional)
11. 11. Computerized Brinell Impression measurement system is available (Optional)
12. 12. Manual / Computerized type Brinell Hardness testing machines are also available.
13. 13. Accuracy conforms to IS:2281-2005 & BS:240.

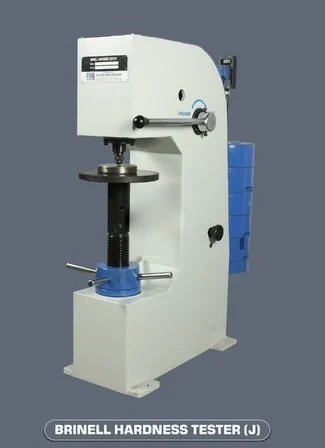

Brinell Hardness Tester J Model
