  • DYNAMIC BALANCING MACHINES

Horizontal Type DSP Based Dynamic Balancing Machines

Features:

  1. 1. The machine has a heavy, robust, C-type load frame & has been designed for production testing of heavy components for Brinell hardness value. This machine is suitable for foundries, engineering industry, forging plants, automobile industries, on the production line.
  2. 2. Load stages - 750 kgf and 3000 kgf.
  3. 3. Since most of the operations are fast and automatic, the test speed is high with less operator fatigue.
  4. 4. A roller conveyor type sliding heavy table (base) for taking impression.
  5. 5. Computerized model is available. Computerized model has built-in CCD and suitable advanced software. Hardness will be displayed on the computer monitor automatically. Results printout can be taken.
  6. 6. Accuracy conforming to IS:2281.

Technical Specification - FBM-D:

MODEL UNIT FBM-10-DSP FBM-30-DSP FBM-50-DSP FBM-100-DSP FBM-300-DSP FBM-650-DSP FBM-1000-DSP FBM-3000-DSP FBM-7000-DSP FBM-10000-DSP
Weight of Rotor kg. 0.5 - 10 1 - 30 2 - 50 3 - 100 10 - 300 20 - 650 10 - 1000 30 - 3000 70 - 7000 100 - 10000
Maximum diameter of rotor mm 500 500 500 1000 1000 1200 1600 2000 2400 3300
Maximum distance between bearings mm 480 480 1100 1350 1350 1650 1650 2400 3300 3300
Maximum distance between bearings mm * *50 *50 *50 **100 **100 **100 350 500 500 500
Journal diameter range over std. roller carriage mm 5 - 50 5 - 50 5 - 50 20 - 100 20 - 100 20 - 100 25 - 140 35 - 200 55 - 300 55 - 300
Power of drive motor H.P. 0.33 0.75 0.75 2 3 5 7.5 20 30 40
Acceleration capability GD2n2 kgm3n2 0.29x106 0.37x106 0.37x106 0.88x106 3.9x106 8.56x106 14.12x106 88x106 160x106 216x106
Minimum unbalance mass measured gm 0.01 0.1 0.1 0.1 0.1 0.1 0.1 0.1 1 1
Maximum unbalance mass measured kg. 0.4 4 4 4 4 4 4 4 40 40
Unbalance Reduction Ratio % 95% 95% 95% 95% 95% 95% 95% 95% 95% 95%
Minimum achievable unbalance per rotor weight Microns or gmm/kg 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5

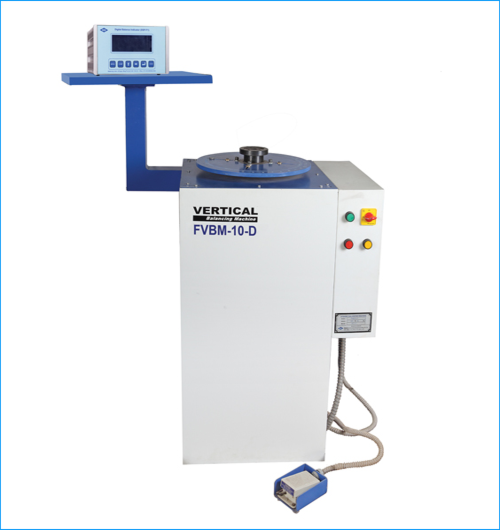

Vertical Type DSP Based Dynamic Balancing Machines

Features:

    • 1. Vertical machines bear kind of hard to achieve a balance between the aircraft and one of the rotors like clutch plates, fan blades, fly wheels, magnetic, and grinding wheels, compressors, pulleys, etc.
    • 2. The microprocessor dashboard with Motor Claims Facility.
    • 3. Achieve a minimum of unbalance up transformation micron 0.5 in CG.
    • 4. Various models - Suitable for rotors from 0.3 kg to 300 kg.
    • 5. It can also computerized versions / e with the printer and the facility in accordance with the requirements of the customers will be supplied.
