Digital Compression Testing Machine
Technical Specification :
| Max. test force | 2000 KN |
| Load range | 0 - 2000kN |
| Load accuracy | ± 1% from 2% to 100% of machine capacity |
| Load resolution | 0.1 kN (20000 counts) |
| Testing space | 240 × 240 × 80~450 mm |
| Piston max. stroke | 50 mm |
| Standard | Comply with ISO or other standards ISO7500, ISO6892 |
| Motor power | 0.75 kW |
| Machine size | 850 × 500 × 1480 mm |
| Approximate weight | 800Kg |
| Rated voltage | 440V 3 Phase AC supply 50 Hz |
| Working temperature | 0~50°C |
| Panel features | Display : 20 characters, 4 lines Peak load hold Display |
| Optional | Elongation measurement facility Computerized Models is also available Servo Model is can be supplied PACE Rate Control facility |

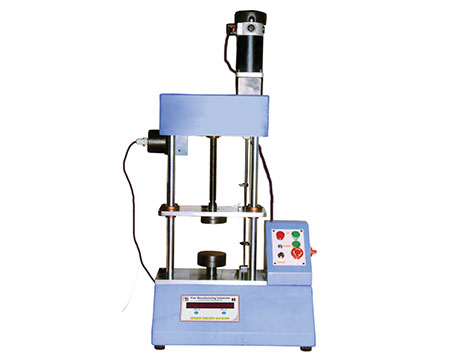

Digital Motorised Coil Spring Testing Machine
| Model | FSTM-2500 N | FSTM-5000 N |
|---|---|---|
| Measuring Capacity (N) | 2500 | 5000 |
| Measuring Range (N) | 0-2500 | 0-5000 |
| Least Count (N) | 0.1 | 0.2 |
| Load Range in N with accuracy of measurement ± 1% | 2% to 100% | 2% to 100% |
| Maximum clearance between crosshead in mm | 250 | 250 |
| Elongation scale least count in mm | 0.01 | |
| Traverse Speed in mm / min | Variable speed drive | |
| Motor HP | 0.5 HP | |
| Supply | Single phase 230 volts 50 Hz. AC | |
| Over travel Safety | Provided with each model |
