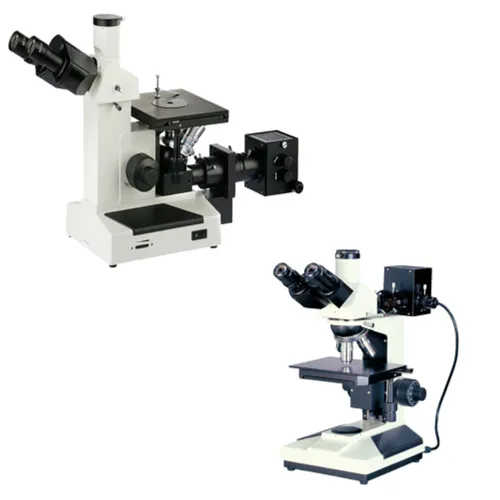

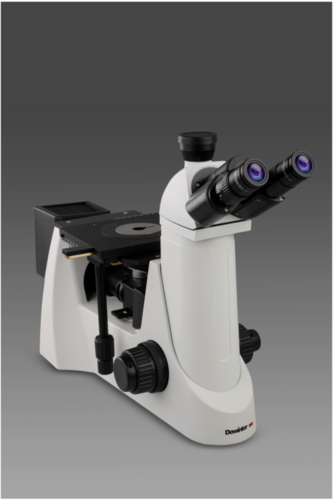

Metallurgical Microscope
Product Description:
Metallurgical microscope -1000M with Siedentop trinocular head design, infinite
optical system, reflected & transmitted illumination system meets performance
demands of metal, plastic, electrical circuits & engineering industry. Its superior coaxial
course and fine focusing tension adjustment knobs helps in better examination of
samples
Features:
- 1. Siedentop trinocular 45° inclined head
- 2. Infinite optical system
- 3. Focusable vertical tube for Digital Microphotography
- 4. 5X to 100X Infinite plan achromatic objectives
- 5. 50X to 1000X Total Magnification
- 6. 0.5X Video Coupler with LED illumination
- 7. Easy-to-use, user-friendly operations
- 8. Based on Technology Transfer (BARC)
- 9. The software provides analysis of microstructure for Steel, Iron, and Aluminum
- 10. Follows ASTM standards
- 11. Live image with single-button click image capture
Application:
It finds best applications the field of metal & mineral industry, for the inspection of thin metal plates, plastic films, electric circuits and opaque metal, minerals.
Upright Metallurgical Microscope
Specification :
| Specification | Details |
|---|---|
| Magnification | 50x – 1000x |
| Viewing Head | Seidentopf Trinocular Head inclined 30˚ Rotatable 360˚, Interpupillary Distance 50 – 75 mm. Vertical phototube for micro photography. |
| Mechanical Stage | Large graduated RECKLESS mechanical stage with low drive co-axial controls for X–Y movements. Stage Size 87mm x 167mm. |
| Focusing | Co-axial focusing control with large knob, Pre-Focusing Lever & Tension. |
| Illumination | 5W LED, Warm color, Koehler’s illumination with oblique device, centre adjustable field and aperture diaphragm. |
| Nosepiece | Reverse angle quintuple nosepiece on ball bearings for polarizer & DIC attachments. |
| Objectives | LWD Plan Achromatic Metallurgical Objective 5x, 10x, 20x, 50x, 100x (S.L.) |
| Sub-Stage Condenser | Swing out front lens, Abbe condenser N.A. 0.9/1.25, filter holder and iris diaphragm. |
| Filters | Blue filter |

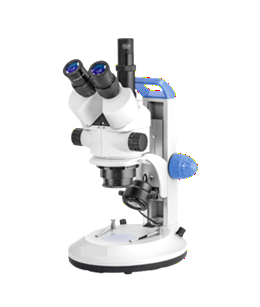

Stereo Microscope
Product Description:
Powerful imaging capabilities at an economical price with excellent specifications and ergonomics. Featuring a zoom magnification of 6.7x to 45x and a long working distance of 100mm.Fully coated prism produces brighter images with higher contrast, and the anti-mold design allows the microscope to be used in environments where the temperature and humidity are high. These instruments are perfect for zoological studies and insectaries. The provision has been given to record pictures of the samples using trinocular head. You may wish to use digital camera/phone camera available with you we can't guarantee the quality of the pics or may want to order an additional camera purchase.
Application:
It finds best well suited for biology, medicine, scientific research, modern electronics industry and other industrial uses. Perform dissections, observe live objects, record the data of species, identify species, taxonomy, work for metallurgy, use it for phone repair, or watch-making, circuit board manufacture or inspection, and fracture surfaces across various manufacturing industries, quality control, forensic science etc. Uses are endless and depends on the customer intended to purchase
Measurements :
- 1. Supports all weld parameters like depth/penetration, leg lengths, throat lengths, root penetration, angle, % penetration and all 2D measurements
- 2. Can find mid-points, perpendiculars to lines, angle between lines
- 3. User defined parameters
- 4. User defined templates for different types of components, with user defined parameters, expected values and tolerances
- 5. User defined rules/criteria for PASS/FAIL
- 6. Automatic profile measurements
- 7. Ability to create a master template for measurements for each type of component
- 8. Ability to set expected value as well as tolerances at individual work level or at a master template level
- 9. Automatic edge detection
- 10. Component level reporting
- 11. Date and time on image
- 12. Result and parameter name on image
- 13. Can add comments to the image
- 14. Integrated Help
Reports :
- 1. Reports in Excel or PDF format
- 2. Report will have the measurement data as well as the image with drawings
- 3. Component level summary report, with images & measurements of each weld spots
