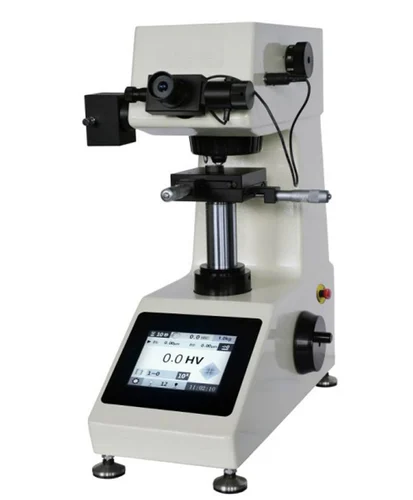

Automatic Micro Vickers Hardness Tester

Load Cell Based Automatic Turret Digital Vickers Hardness Tester:

  1. 1. Close Loop high precision load cell structure.
  2. 2. Dual optical systems design (eyepiece + camera path), both paths can work at the same time, no need switch knob.
  3. 3. 5.6’’ Touch screen, menu structure, easy operate.
  4. 4. Quality automatic judgment function.
  5. 5. Automatic turret, automatic loading, dwell, unloading.
  6. 6. With emergency stop button, operation more safe.
  7. 7. Automatic turret, digital eyepiece with encoder.
  8. 8. Large range test force: 1 to 30kgf.

Main Features of Vickers Hardness Tester:

  1. 1. Closed loop design with high accuracy load cell, no need to install dead weights, making installation easier and enabling automatic loading, dwell, and unloading for easy operation.
  2. 2. With load automatic correct function, greatly improving test accuracy and simplifying calibration.
  3. 3. Modular design for simple maintenance.
  4. 4. With hardness conversion function, allowing HV hardness value to convert to HR, HB, HK, etc.
  5. 5. With HV/HK test function.
  6. 6. Built-in printer for optional purchase.

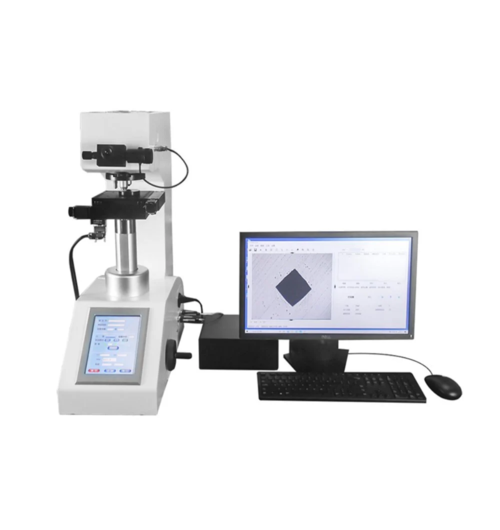

  7. 7. Can work with camera and Vickers indentation measuring software.
  8. 8. According to different visual habits of the operators, the strength of the light source can be adjusted to avoid visual fatigue during long-time operation.
  9. 9. Industrial digital touch screen can directly display hardness value, conversion hardness, testing method, testing force, dwell time, test number, and testing process.
  10. 10. One-time casting iron molding shell ensures a more stable structure; Adopted car painting technology, pure white color looking more decent; High scratch resistance capability, used for years still brightness like new.

Optional purchase: XY cross work table

Specification:

Testing Force

Specification:

  1. 1. 0.3Kgf (2.94N), 0.5Kgf (4.90N), 1.0 Kgf (9.8N), 2.0Kgf(19.6N),
  2. 2. 2.5Kgf(24.5N), 3.0Kgf(29.4N), 5.0Kgf(49.0N),10.0Kgf(98.0N),
  3. 3. 20Kgf(196.0N), 30Kgf(294.0N)

Advance Computerized Touch Screen Microvickers Hardness Testers

MMT-X8 (Alpha Series)

Highly precise hardness tester suitable for test of widely hardness ranges from softest to hardest materials. This machines available with Manual & automatic turret system guided by optical cross rail to achieve highly accurate & precise results. This machine is equipped with built-in encoder with click button on encoder to avoid human errors. Equipment is also featured with a DATA storage & calibration. Most compact in size (540*260*650mm) & light weight (50kg).

features:

  • 1. Automatic Turret System
  • 2. Multifunctional 8 inch LCD touch screen panel
  • 3. Flexible & foldable design of hand wheel
  • 4. 10X digital encoder with built-in encoder
  • 5. 8P data storage system with store up to 300 test reports
  • 6. LED cold light source (can use continuously for 24 hrs.)
  • 7. Easy conversion of hardness scales
  • 8. Hardness Scale HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
  • 9. Hardness Range 1HV - 4000HV
  • 10. Magnification 10x for observation & 40x for measurement
